High speed centrifugeM15G
Product Introduction
Tabletop high speed micro-centrifuge which functions are powerful, highly commonality and handy for operation.The centrifuge which use the latest controller system which will be reliable quality and superior performance . It widely used in medical laboratory, industrial laboratory , biochemical and molecular biology researching . Also more pronounced in the genetic、protein nucleic acid and PCR field .
Advantage
1.Use the advanced and reliable Infineon vector sine wave drive control system. Accurate controlled the speed ,time and RCF.
2.Frequency conversion ,brushless motor without maintenance, control speed 100～15000rpm ± 20rpm；
3.Centrifuge speed and RCF step increase 10rpm/10×g, timing control 1-99 minutes or 1-59sec. Accuracy±1 seconds. Instantaneous centrifugal, press the（flash）button which can be centrifuged faster. Automatically record the last experimental value.
4.The master device and the rotor which use the high strength material ,it is nice sealing property and high temperature sterilization performance .
5.PTFE cover Stainless steel cavity and solid construction, suitable for continuous use, electronic lock, easy to open lid, automatic locking lid to ensure safety.

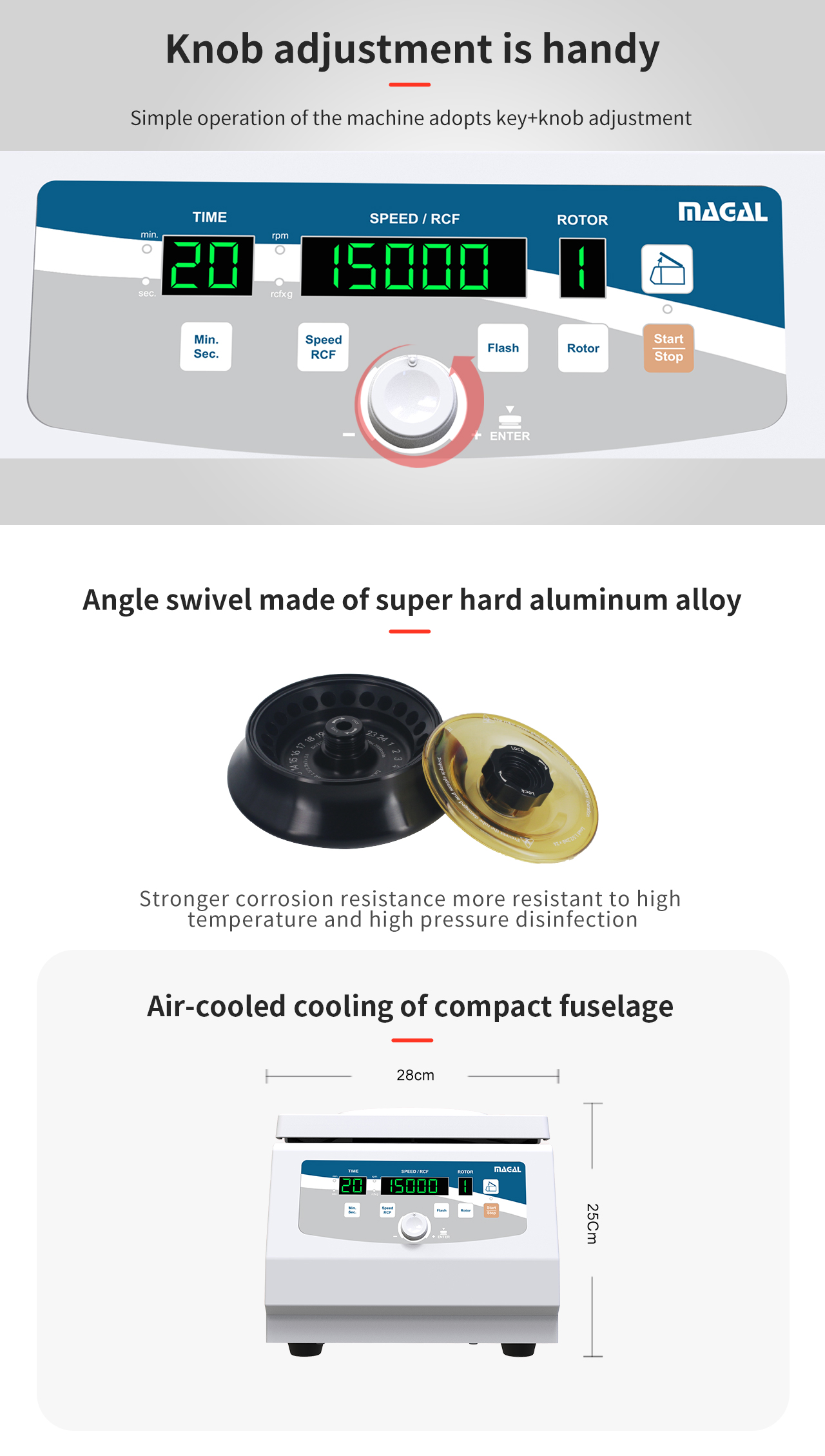

6.Large LED display showing which can be clear the operating parameter, separated button for rpm/rcf transformation . easy to adjust and check relative centrifugal force in real time.
7.Single knob controlled can be fast changed parameter.
8.The centrifuge have lid protection , excessive speed and imbalance detection system, which can be real-time monitoring , ensure the centrifuge safe operation, when appear the imbalance sound signal reminder and stop operation at the same time ,LED display show the error code.
9.Forced ventilation cooling and excellent air heat exchange technology can significantly and effectively reduce the increase in the temperature of the rotor.Automatic opened the lid when finish the operating ,The samples will not overheating and discharge the sample more convenient.
10.The isolation layer outside the centrifugal cavity can fully absorb noise and reduce vibration.
11.The rotor have the sealed cover , it will be prevent the contamination from sample.
Main machine Technical data
Part.No. | M15G |
Input voltage | AC220V/50～60Hz/ AC120V |
Input power[W] | 450W |
Max. Capacity[ml] | 50(5ml×10) |
Speed Range[r/min.] | 100~15000rpm/step increase 10rpm |
Speed Accuracy | ±20rpm |
Max.RCF [×g] | 20375×g/step increase10×g |
Motor | Maintenance-free brushless inverter motor |
Timing Control | 1-99min/1-9sec；Accuracy ±1sec |
Drive control system | Infineon vector sine wave drive control system |
Digital Display | LED |
Operation method | Physical button |
Lid lock method | Mechanical pressing lock,electronically controlled open |
Max.acceleration time[sec]/Speed up gear | 18s/9 gears |
Max.Deceleration time[sec]/Speed down gear | 20s/10gears，0 gears for stop free |
Dimensions:D×W×H | 280×360×250 |
Weight without rotor [Kg] | 17 |
Noise level at max. speed(apprex) | ≤60dB(A) |
Allowable ambient temperature/relative humidity | +5~40℃/80% |
Protection class | IP20 |
Interference suppression standard | EN 61010-1,EN 61010-2-020,EN 61326-1, EN 61010-3-2/A2 |

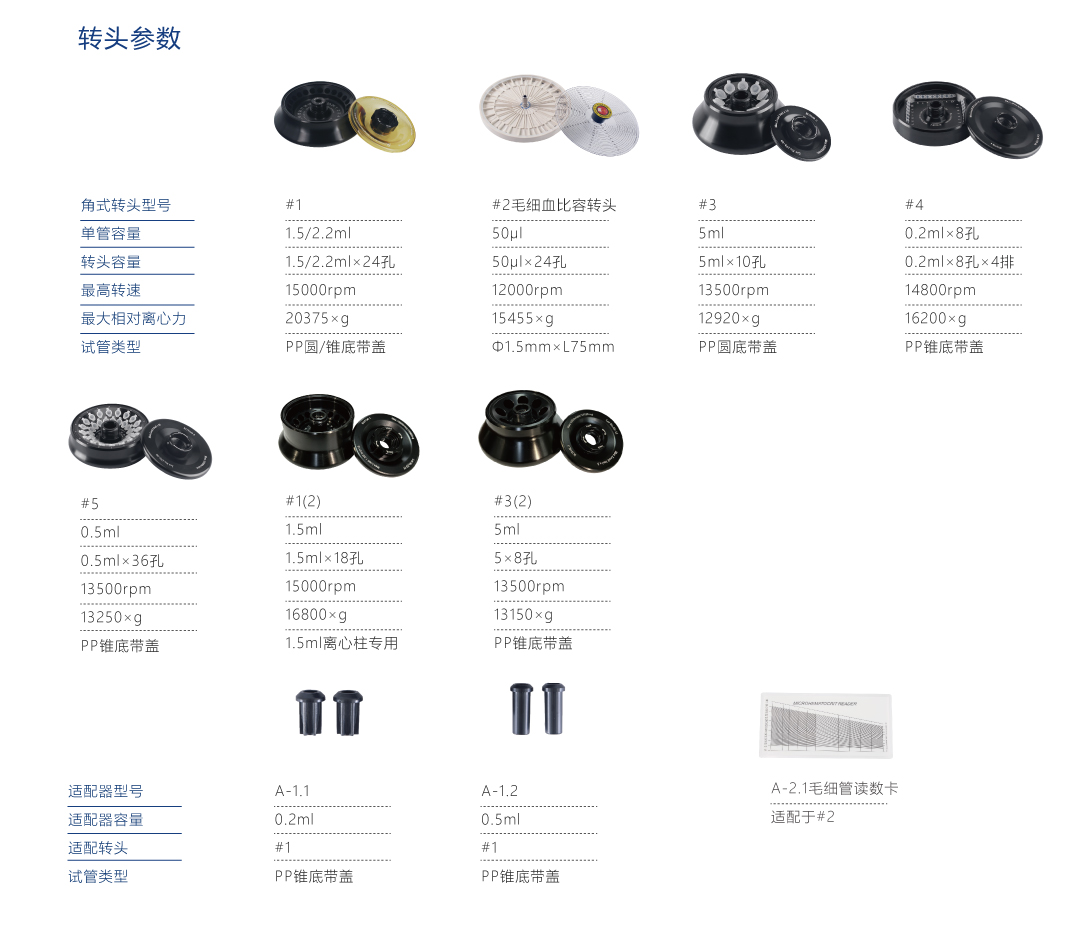

Rotor Technical data
Part Name | Capacity ML×No. | Max.Speed r/min. | Max. RCF ×g | Tube type |
#1 | 1.5ml/2.2×24 | 15000 | 20375 | PP conical bottom with cap |
#2 | Capillary tube×24 | 12000 | 15455 | Dia.1.5mm×L75mm |
#3 | 5ml×10 | 13500 | 12920 | PP round bottom with cap |
#4 | PCR 0.2ml×8×4 | 14800 | 16200 | PP conical bottom with cap |
#5 | 0.5ml×36 | 13500 | 13250 | PP conical bottom with cap |
Order information
Part.No. | Part Name | Specification | |
M.01.011 | M15G | Main Machine | |
L.02.012 | #1 | Angle rotor /rotor lid 2.0/1.5ml×24wells | Optional |
L.02.013 | #2 | Dia1.5mm×75mm ×24pcs capillary tube rotor | Optional |
L.02.014 | #3 | Angle rotor /rotor lid 5ml×10wells | Optional |
L.02.015 | #4 | PCR rotos/rotor lid 0.2ml×8wells ×4 rows | Optional |
L.02.016 | #5 | Angle rotor /rotor lid 0.5ml×36wells | Optional |
L.06.005 | M15G-AP-1 | adaptor 0.2ml×24 pcs / Standard M15G-A-1 | Standard configuration # 1 |
L.06.006 | M15G-AP-2 | adaptor 0.5ml×24 pcs/Standard M15G-A-1 | Standard configuration # 1 |
L.06.002 | M15G-AP-2.1 | Capillary reading card | Standard configuration # 2 |
