Mini centrifugeMiniL-7G
Product Introduction
MiniL-7G high capacity mini centrifuge adopts the international advanced design concept and manufacturing technology.It come with aesthetic appearance as well as the compact structure. High versatility, simple operation and with both "smooth start" and "smooth braking" functional characteristics.
It is suitable for micro tube filtering and fast centrifugation, micro blood cell separation, microbial sample processing, PCR experiment partition centrifugation. It can be prevent the liquid to shop in the tube wall.
It is an ideal centrifuge for small sample which need to do centrifugal.
Advantage
1.Adopt advanced and reliable PI high-frequency full-range wide-range power control scheme.Comply with AC100-250V/50/60Hz input power.ST16 bit MCU/PWM/ Speed Adjustable system to control the voltage, current, speed and centrifugal time more accuracy to suit the harsh environment,Extend the service life of the motor and lower the electromagnetic noise.
2.Reliable and durable DC permanent magnet motor. Wide speed range 500-12000rpm,accuracy ±9%. RPM step increase 500rpm. Timing control 1-99min or 1-59sec.
3.Faster acceleration/deceleration rate,complete the experiment requirement in a shorter time.
4.High-strength host and rotor materials which can resist all kinds of chemical corrosion.The Rotor can be with high temperature sterilization.
5.Unique rotor snap-on installation design to replace the rotor without any tool. It makes experimenter replace the rotor more convenient and fast.

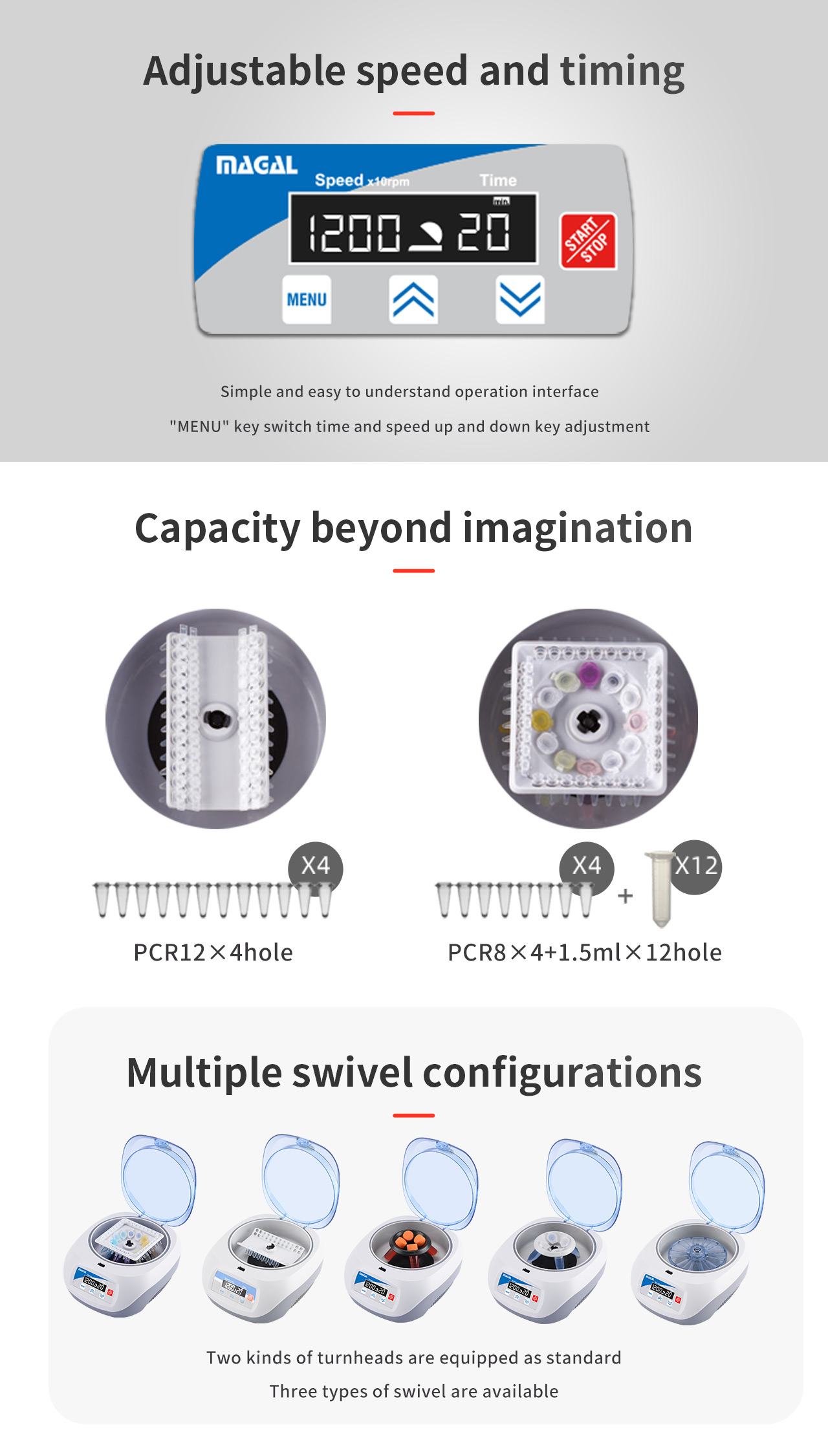

6.The designed new multi use rotor compatible with a variety of tubes.It meets the basic needs of experiment by rotor not replace.
7.RSS vibration absorption material,the centrifuge run more smoothly.Spatial-rotation for 360°arc shape,without any corner. low windage resistance, with slow temperature increase.Lower noise 7G≤58dB、12G≤60dB.
8.Lid protection, overspeed and imbalance detection system. It can monitor the centrifugation process in real time to ensure the safe operation of the instrument.While operation is over, error or imbalance occurs, the centrifuge operation stops and sound signal prompts. LCD diaplay the result code.
Main machine Technical data
Part.No. | MiniL-7G |
Input voltage | AC100-250V/50/60Hz |
Power fuse | PPTC/Self-recovery fuse/no need to replace |
Input power[W] | 30W |
Drive control system | ST16 bit MCU/PWM/ Speed Adjustable |
Display | White LCD on black background |
Motor | DC24V/DC permanent magnet motor |
Timing Control | 1-99min.1-59sec. |
Speed [r/min.] | 500～7000rpm±5% |
Speed Increase | 500rpm |
Max RCF[×g] | 3286×g |
誤操作/報警故障 | 聲音提示+顯示代碼 |
Dimensions:D×W×H | 194×229×120 |
Weight | 1.6 |
Noise level at max. speed(apprex) | ≤58dB(A) |
Acceleration time [sec] | ≤7s |
Deceleration time [sec] | ≤10s |
Protection class | IP20 |
Interference suppression standard | +5-40℃/80% |
Interference suppression standard | EN 61010-1,EN 61010-2-020,EN 61326-1,EN 61010-3-2/A2 |
Rotor Technical data
Part.No. | Rotor.No. | capacity ML×No. | Max. Speed rpm/min. | Max. RFC×g |
MinilL-7G-A-1 | #1 | 1.5/2×12+PCR0.2×8×4 | 7000 | 3232 |
MinilL-7G-A-2 | #2 | 5×4 | 7000 | 2210 |
MinilL-7G-A-3 | #3 | PCR0.2×12×4 | 7000 | 3286 |
MinilL-7G-A-4 | #4 | 5/1.8/1.1×4 | 7000 | 3180 |
order information
Part.No. | Part Name | Specification | |
MiniL-7G-201000 | MiniL-7G | Main Machine | |
MiniL-7G-201001 | MiniL-7G-A-1 | Multi use rotor 1.5/2ml×12+PCR0.2ml×8wells×4 rows | optional |
MiniL-7G-201002 | MiniL-7G-A-2 | PCR rotor 0.2ml×12wells×4rows | optional |
MiniL-7G-201003 | MiniL-7G-A-3 | Angle rotor 5ml×4wells conical button tube | optional |
MiniL-7G-201004 | MiniL-7G-A-4 | Angle rotor 5ml×4well selfstand screw cap tube | optional |
MiniL-7G-201005 | MiniL-7G-AP-1 | Adaptor 0.5ml×12pcs/standard MiniL-7G-A-1 | |
MiniL-7G-201006 | MiniL-7G-AP-2 | Adaptor 0.2ml×12pcs/standard MiniL-7G-A-1 | |
MiniL-7G-201007 | MiniL-7G-AP-3 | Adaptor 1.8/1.1ml×4pcs/standard MiniL-7G-A-4 |
